"John Deere"

by University of North Dakota, Industrial Technology








Specifications:

Robot Name:
 "John Deere"
Date created:
 2002
Features:
 R/C controlled; tractor appearance with gripper.  Developed for competitions.
Controller(s):
 Runner Electronic Speed Controller (4)
Communication:
 Radio Control RF
Motor:
 Windshield Wiper
Power:
 7.2V rechargeable batteries
Drive Type:
 Wheeled Differential with Idler
Built by:
 University North Dakota
Contact Info:
 jeremyagsco@hotmail.com

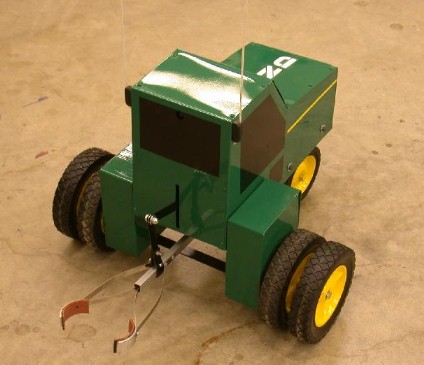

The robot has a professional appearance consisting of metal frame and plastic wheels, all painted to resemble the famous tractor.  It performed in competitions in Panama City, FL and Rochester, NY.

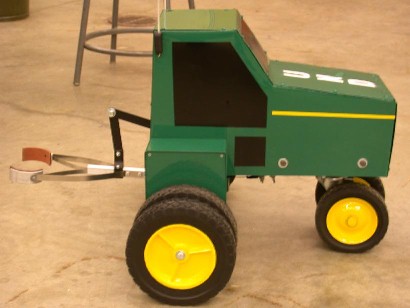

Side-view showing the gripper arm.  It was designed to pick up and carry objects of soda-can size.

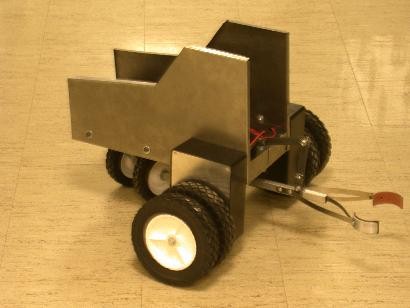

The frame-work almost finished, the robot takes shape.





The internal workings of the robot including motors and wiring.

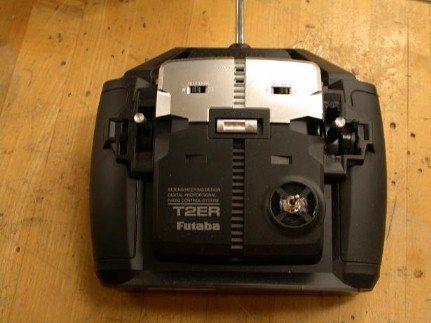

The R/C transmitter provides two channels of wireless control.  Toggle switch selects one of two crystals for a total of four channels:  two for robot movement and two for gripper action.

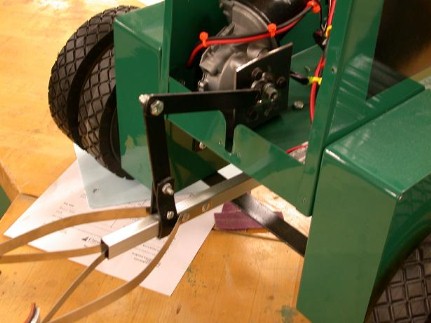

The underside shows the gripper attachment.  Pulling the cable closes the gripper.  The cable attaches to a small lever driven by a worm gear motor.





The gripper also can be raised or lowered via worm-gear motor.





This robot was truly a team effort.  Congratulations to the Industrial Technologists at UND!
