The RTU functions as a remote terminal that is under the complete control of a host PC or other computer device and commnicates message text and commands in standard ASCII format via Ethernet, RS-485, or RS-232.  It may be used with a magstripe or RFID proximity card-reader.  Card-data and/or keypresses are automatically transmitted to any host PC or computer device.  Pre-formatted ASCII data received from the host will be displayed on the LCD.

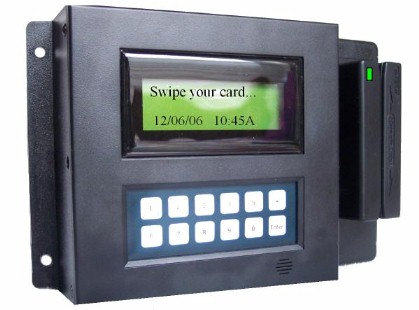

The heart of the system is a Rabbit Semiconductor OP6700 programmable terminal with 4x20 line LCD display, 12-key membrane keypad with relegendable keys. Rabbit Semiconductor is a renowned manufacturer of high-quality, affordable single-board computers and related products. Click here for more information on the programmable terminal.

The RTU offers features found in the higher end products, but at a fraction of the cost.  How do we do it?  The answer is simple - no overhead.  You save big $$$ by purchasing the terminal unit(s) directly from the supplier.  Some assembly may be required depending on the hardware configuration desired.  For instance, a keypad-access configuration with no card-readers will require almost no assembly and will be the most economical.  Or, you may choose to add one or even two card-readers.  Once you've assembled the unit, we provide firmware programming for a nominal fee.

The RTU features a number of access options including barcode reader, proximity reader, and magstripe reader.  If desired, card-readers may be excluded, allowing the system to be used in keypad-access mode - the most economical solution.

The RTU also accepts special host commands.  These commands perform functions such as terminal configuration and setup.  The RTU can also accept a command to activate or deactivate its onboard output driver.  Suitable for controlling a small external relay, this output can be used in a variety of applications including gate activation, process control, alarm activation, etc.  The open-collector output can sink up to 40VDC @ 200mA.

Optional host application software provides access to the RTU from your Windows PC.  Great for monitoring and/or testing.  Send pre-constructed messages to the terminal and receive terminal responses.  Includes auto-detect feature and firmware upgrade utility.

The system is customizable to suit your needs.

Low-cost terminal - purchase directly from the supplier

Completely customizable

Enable/disable keypress buffering and/or time-date footer

Firmware licensing for nominal fee

Card-reader options:  magstripe, proximity, barcode, keypad-only

Communications options:  Ethernet, RS-485, RS-232

Multiple RTUs may be networked

Uniquely addressable

Battery-backed real-time clock

Open collector output signal controls an external relay

Optional host application software (for Windows PCs)

Firmware upgrade capability (plus fail-safe recovery)

Great for time/attendance, security, access control, etc.

Designed with OEMs in mind

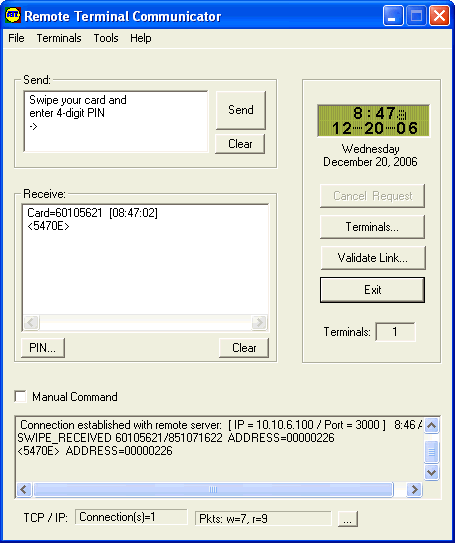

The optional host software provides functions for configuring the RTU, issuing messages for display at the LCD, and  receiving terminal responses:

The lists below show pricing for the RTU terminal and includes several card-reader options.  The actual cost of your system will depend largely on the card-reader(s) you choose.  You may select 0 (keypad-only), 1, or 2 card-readers.  (Reader(s) are physically attached to either side of the terminal device.)


What's your application?  Kadtronix can provide the right mix of hardware and software to suit you.  Contact us today or request a free quote.
