Robot Drive System (RDS)

Are you faced with the challenge of building a large 'bot, but aren't sure how to drive it?  The robot drive system  (#KD-RDS1) could be the answer.  The RDS combo consists of high-torque motor and puncture-proof tire with integrated pulley.  Haven't considered a belt-drive system?  Think about these advantages:
  • Low cost and quiet operation.
  • Easy installation.  Precise alignment is not required as with other types of drive systems.
  • Adjust belt tension for desired operation.  Adjust tight for non-slip, high-torque action.  Or adjust looser for smooth, clutch-action starts (e.g., mini-scooters).
(Aluminum frame shown in the picture is for demonstration purposes only and is not included.)

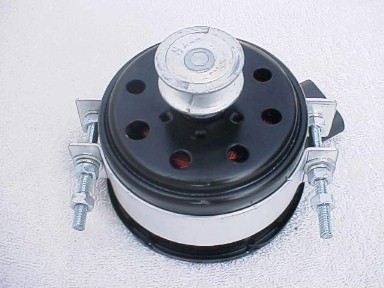

The high-speed drive motor has the power to get your 'bot moving quickly.  Rated 12 VDC, 3.6A at 2500 RPM (no load), it will also accept 24VDC for increased power and speed.  It features customized mounting bracket, two mounting bolts, nuts, and die-cast pulley.
The same variety used in electric bicycles, this high-torque, reversible motor can propel your device to speeds up to 15 MPH or more.  RDS is  well suited for mobile robots, carts and electric mini-scooters.   Includes 18" of #10 wire with integrated motor connector.

For detailed motor specs, Click Here




Need a motor controller suitable with the RDS?   Diverse Electronic Services offers an array of products including PWM controllers with variable speeds from full stop to full forward or reverse.

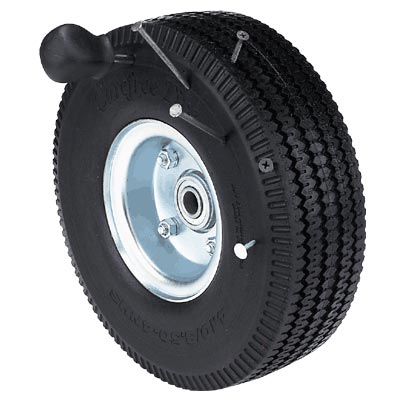

The 10" wheel will keep your 'bot moving even in the toughest envornments.  It's puncture-proof, so there's no need to worry about leaks or blow-outs.  Nails, screws, or other sharp objects are not a problem.  One-piece wheel with micro-cellular polyurethane structure will give your project an “air-cushioned” ride.  (This is NOT a solid rubber tire.)   No air, no flats, no maintenance.  Feaures dual set of bearings with 5/8" bore, offset hub, and 7.5" nylon pulley with fiberglass reinforcement.






RDS Specifications:
  • 10" wheel with  with puncture-proof rubber tire
  • Integrated 7.5" pulley
  • 12VDC  motor (also accepts 24VDC) & pulley
  • High-quality drive belt included
  • Choose single drive (#KD-RDS1) or dual drive (#KD-RDS2)
  • Max speed:  15 MPH







Prices:
KD-RDS1
low as

$149
KD-RDS2
low as

$259
